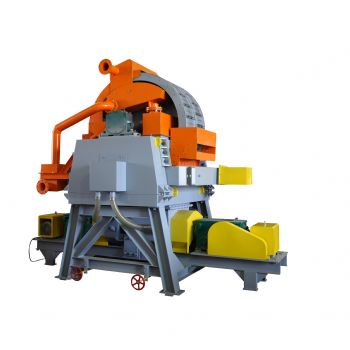

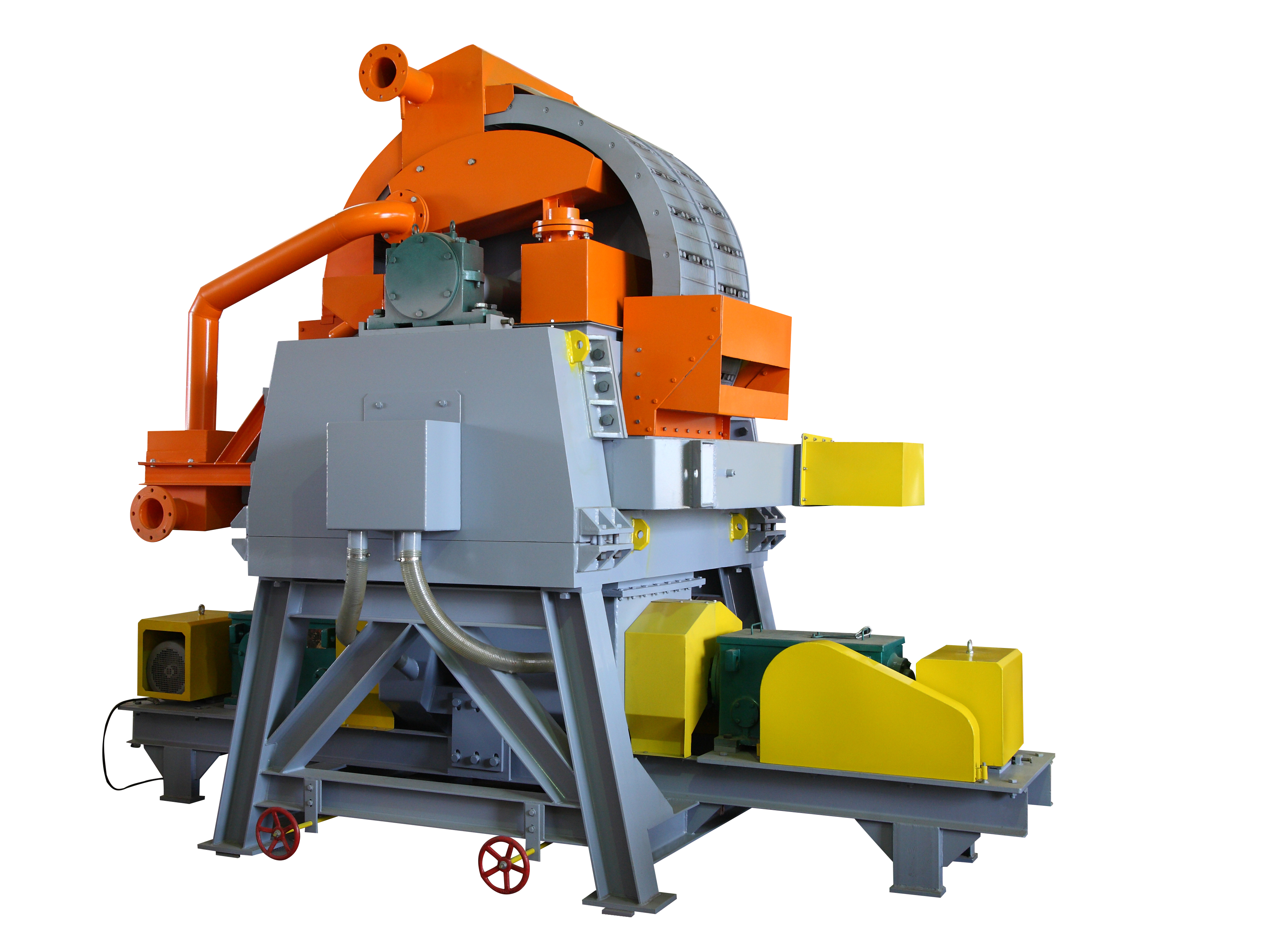

SSS-I Wet High Gradient Separator of Double Frequency and Double Upright Ring

Home >> Products >> SSS-I Wet High Gradient Separator of Double Frequency and Double Upright Ring

SSS-I High Gradient Separator

The machine can separate weakly magnetic minerals, moderately magnetic minerals and can remove impurities for the purification in the non-metallic minerals. Some typical applications are shown below:
Ferrous metal ore: Recovery of specular hematite, hematite, limonite, siderite, chromite, manganese ores, etc.
Nonferrous metal ore: Separation of fine embeded wolframite from quartz, magnetic pyrite from cassiterite in a polymetallic sulfide ore, and cassiterite, wolframite from limonite, etc. Separation of tungsten, wolframite from garnet, etc.
Rare metal: Recovery of titanium iron ore, iron and tantalum-niobium ore, lithium mica, monazite, and phosphorus yttrium ore. Separation of lithium pyroxene from hornblende, tantalum from niobium, iron ore from microlite, titanium iron ore from man-made rutile, and rutile from garnet etc.
Nonmetalliferous ores: Purification of glass ceramics industrial raw materials like quartz, feldspar and kaolin, Purification of high-temperature refractory silicates like andalusite & kyanite. Elimination of iron, hornblende, mica, electrical stone, garnet and other harmful impurities, etc.
Other applications: Wastewater treatment for steel mills and power plants or removing catalyst pollution from chemical raw materials.

詳細(xì)信息

Technical specification

Model Specification	SSS-I-500	SSS-I-800	SSS-I-1000	SSS-I-1200	SSS-I-1500	SSS-I-1750	SSS-I-2000	SSS-I-2500	SSS-I-3000(1.3T)
Ring diameters（mm）	500	800	1000	1200	1500	1750	2000	2500	3000
Magnetic induction field,(T)	0~1.2	0~1.0	0~1.0	0~1.0	0~1.0	0~1.0	0~1.0	0~1.0	0~1.0(1.3)
Medium	Magnetic stainless rods
Capacity dry feed（t·h^-1）	0.3~1.0	1.0~3.0	4~8	8~18	10~30	20~50	30~80	60~150	150~250
Slurry throughput（m³/h）	0~10	0~30	0~50	0~100	0~150	0~200	0~300	0~500	0~650
Feed size（mm）	≤1	≤1	≤1	≤1	≤1	≤1	≤1	≤1	≤1
Feed concentration（%）	10~40	10~40	10~40	10~40	10~40	10~40	10~40	10~40	10~40
Pulsating Stroke（mm）	0~16	0~24							0~30
Pulsating Frequency (Hz-Cycles/Min)	0~136	0~280
Water pressure（Mpa）	0.1~0.2	0.1~0.2	0.2~0.3	0.2~0.3	0.2~0.3	0.2~0.3	0.2~0.3	0.2~0.3	0.2~0.5
Flush water volume（m³/h）	1.0~2.0	5~8	8~16	25~40	50~80	70~100	90~120	180~250	300~480
Cooling water volume（m³/h）	1.0~2.0	1.5~2	2~2.5	2~3	2.5~3.5	3 ~4	4~5	5~8	8~10
Rated power（kW）	14	18	24	30	41	46	59	64	90(104)
Ring motor power（kW）	0.25	1.5	2.2	2.2	3	5.5	5.5	11	18.5
Jigging motor power（kW）	0.55×2	1.5×2	1.5×2	1.5×2	2.2×2	2.2×2	2.2×2	7.5×2	18.5×2
Blower motor power（kW）	2.2	4	4	4	5.5	7.5	7.5	11	18.5
Total machine weight /t	2	5	9	13	22	32	46	89	148(168)
The heaviest part /t	2	5	9	13	8	13	15	15	18.5
Separator dimension Long×width× high,(mm)	14301045 1780	24502005 2100	28402010 2250	29602130 2580	34002680 3280	41003010 3530	41603260 3900	57514409 4968	783251236331 (783251536576)
